Our Machines
We offer unlimited color depth with high-precision print heads and eco-friendly original inks.

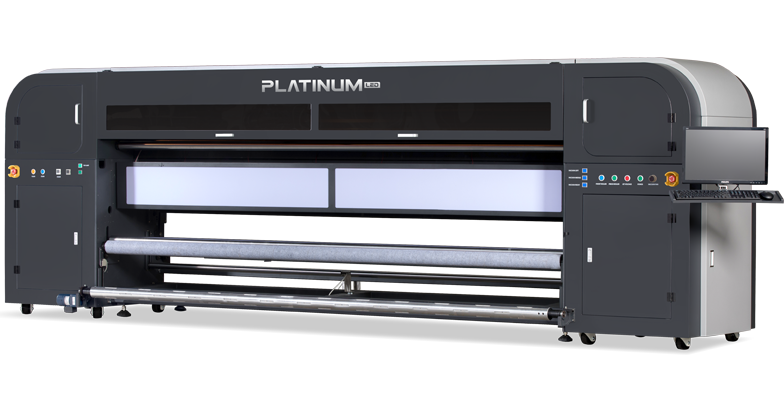

PLATINUM PCT LED
Güç, Keskinlik ve Üstün Performans
PCT LED, gelişmiş teknolojiyi esneklikle buluşturan yeni nesil bir baskı çözümüdür. Konica veya Ricoh baskı kafası seçenekleriyle donatılabilen bu makine, üretim ihtiyaçlarınıza göre özelleştirilebilir.
Konica kafalarla 2800 dpi, Ricoh kafalarla 2400 dpi çözünürlüğe ulaşarak her baskıda olağanüstü netlik ve detay sunar. Geniş medya uyumluluğu sayesinde tabela, tekstil, promosyon ürünleri ve iç dekorasyon uygulamalarında canlı sonuçlar sağlar.
Technical Specifications
Print Resolution
Konica 2880 DPI / Gen5-6 2400 DPI
Print Speed
120 m2/s
Print Heads
Konica Minolta 1024A - Ricoh Gen5/Gen6
Number of Heads
14 (Maks.) - 10 (Maks.)
Print Area
3200 mm
Ink Type
UV - LED
Drop Volume
Konica 13Pl. / Gen5 - 7Pl. / Gen6 - 5Pl.
Power Requirements
230v (+/-) 10% / 22A / 50HZ
Curing System
UV Curing - LED Curing
Machine Dimensions
1150 mm x 5400 mm x 1650 mm
Color Scale
CMYK + Lc + Lm + W
RIP Software
PhotoPrint - Caldera (Opt.)

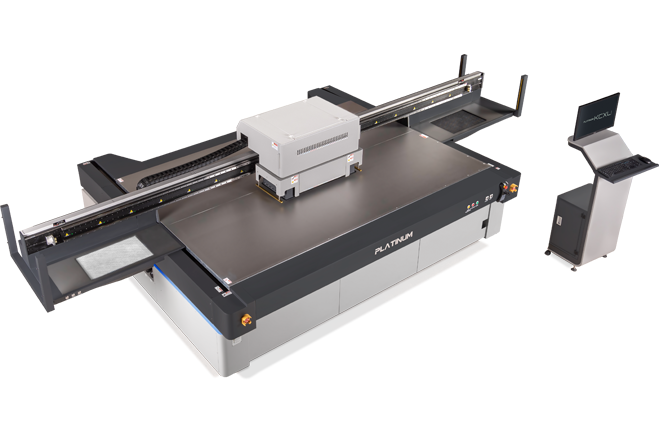

PLATINUM KCXL
Now prints are very fast!
Superior Print Quality on Every Surface: Meet the KCXL UV Printing Machine
The KCXL UV Printing Machine offers extraordinary print quality on many different surfaces from glass to wood, metal to plastic, thanks to its 2400 dpi high resolution and 5 picoliter drop size.
Capable of easily printing on materials up to 100 mm thick, this system is the ideal solution for those who want to make a difference in the sector. Thanks to advanced vacuum technology, the printing surface is securely fixed; this allows for flawless and clear prints up to 1.8 mm in height.
Whether you use it in decoration, promotion, or industrial production areas — KCXL UV combines quality and efficiency in every field. UV glass printing, UV wood printing and much more are now possible in a single machine.
Technical Specifications
Print Resolution
Konica 2880dpi - Ricoh 2400 Dpi
Print Speed
180 m2/s
Print Heads
Konica Minolta 1024İ - Ricoh GEN6
Number of Heads
16 Maksimum
Print Height
100 mm
Ink Type
UV - LED
Drop Volume
5 pl.
Power Requirements
230v (+/-) 10% / 40A / 50HZ / 60HZ
Machine Weight
1370 - 2500 kg.
Makine Ölçüsü 2512
2200 mm x 5220 mm x 1530 mm
Makine Ölçüsü 3020
3000 mm x 5800 mm x 1530 mm
Color Scale
CMYK + White + Lc + Lm + Varnish
RIP Software
PhotoPrint / Caldera (Opsiyonel)
Print Area
2500 mm x 1520 mm / 3050 mm x 2050 mm
